Acetylene Gci

Acetylene is a chemical compound composed of two carbon and two hydrogen atoms with the formula C₂H₂. The two carbon atoms are held together by what is known as a triple carbon bond having a CH bond angle of 180 deg.

Acetylene is one of the well-known fuel gases used across the world. It is also one of the most dangerous gases owing to its properties. It is unstable in its pure form and thus is usually handled as a solution. Pure Acetylene is odorless, but commercial grades usually have a marked odor due to impurities such as divinyl sulfide and phosphine.

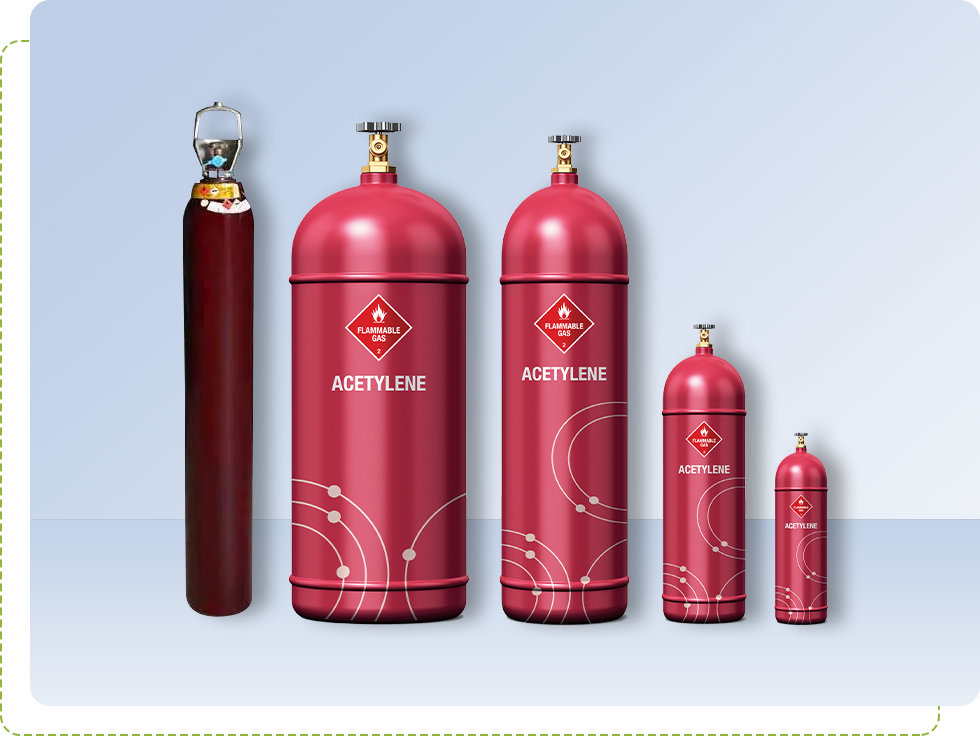

Acetylene is one of the most popular dissolved gases used today. Being chemically unstable, it can decompose at room temperature if above 15 PSIG. Therefore Acetylene is compressed into a cylinder with an inert, porous mass made of calcium silicate. This mass is saturated with acetone to help absorb the Acetylene. When introduced into the cylinder, acetylene gas slowly dissolves into the acetone, which can easily absorb up to 8 times the quantity of Acetylene compared to a mass without acetone. Acetylene is considered to be the hottest and most efficient of all fuel gases. It is also known for its strong localized heating capacity.

Ordering / Supplies

Type of Cylinder Cylinder Volume (Ltrs)
DA 2.5485
DB 3.1148
DC 3.6812
DD 4.2475
DE 4.8138
DF 5.3802
DG 5.9465
DH 6.5128
DHA 6.9375
DHB 7.2207

product specifications

Typically, a compressed acetylene cylinder is designed to feature the materials in the below-given ratios. This combination allows Acetylene to be stored in cylinders at high pressure without the danger of decomposition or detonation. On the safer side, it is recommended to maintain the gas system pressure at a maximum of 15 PSIG during regular use.

Materials Ratio

Porous Mass Acetylene Gas Saturation Gas Free Volume Acetone
10% 34% 1% 13% 42%

Technical Know How

It’s a chemical compound with the formula C2H2 and structure H−C≡C−H

It is widely used for welding in the fabrication industry

It is commonly used in the cutting of steel

Dissolved Acetylene usage through cylinders with a pressure of 180 PSI

Utilization of cylinders according to color code.

Testing and examination of every cylinder is required before refilling
